Revolving-Granulator - Granulation equipment

Products

< >

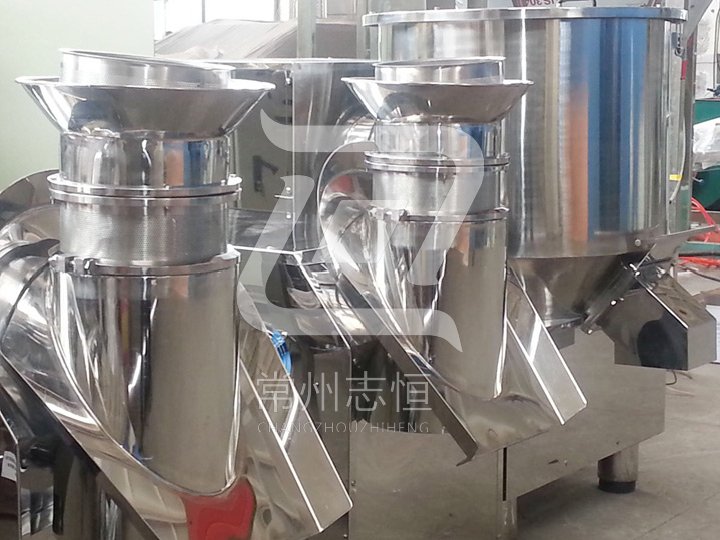

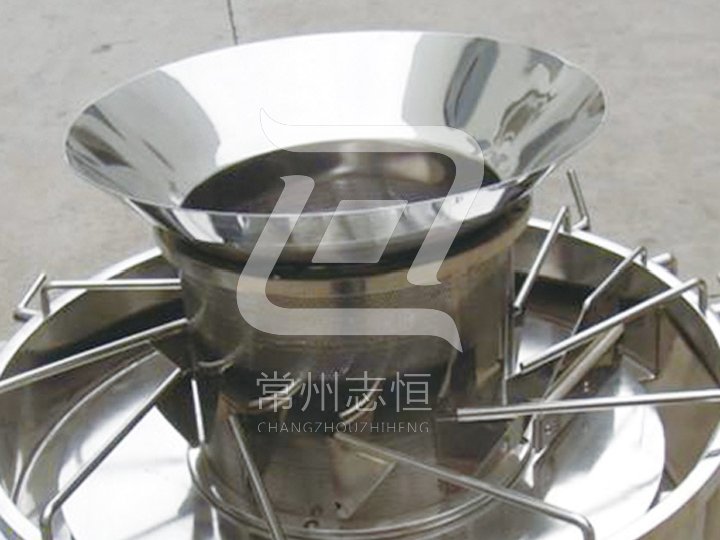

ZLB Revolving Granulator

Key word：Revolving Granulator

Product overview：The machine is mainly suitable for pharmaceutical industry,foodstuff industry,chemical industry,soild drink industry and so on.It can make the stirred raw material granulate the needed the needed granule.Especially…

Product Details Photo gallery Video highlights

APPLICATION
The machine is mainly used for pharmaceutical industry, foodstuff industry, chemical industry, solid drink industry, and etc. It can make the stirred raw materials into needed particle, especially for the materials that have higher adhesiveness.

FEATURES
All material contacted parts are made of stainless steel and its appearance is beautiful. It is a high efficiency granulator and it can discharge materials automatically so it can avoid the damages caused by manual operations and suitable for continuous production line.

Technical Parameter

Size of milling knife (mm)	250	300B	300D
Diameter of granule(mm)	Φ2-2.2 （it may be in accordance with the requirements of costomers）	Φ1.2-3 （it may be in accordance with the requirements of costomers）	0.5-6 （it may be in accordance with the requirements of costomers）
Overall dimesions（mm）	700×540×1300	880×640×1300	1300×800×1200
Power of motor (kw)	3	4	7.5-6
Weight (kg)	350	400	780
Production capcity（kg/h）	100-200	140-400	300-600
