FZG Square Static Vacuum Dryer

Key word：Square Static Vacuum Dryer,Static Vacuum Dryer,Vacuum Dryer

Classification：Vacuum、Conduction drying series

Product overview：Tt is well known that vacuum drying is to put raw material under the state of vacuum fo r heating and drying If use vacuum to pump air and humidity out，the dry speed will be faster.

Product Details Photo gallery Video highlights

FEATURES
1) The boiling point of raw material will be decreased under the vacuum condition and make the evaporator increases the pushing force of heat transfer.
2) The heat source can be low pressure steam or waste heat;
3) The loss of the heat during the evaporation is only a little.
4) The disinfection treatment can be carried out before drying and there is no impurity material mixing during drying process. It is in conformity with the requirement of GMP;
5) Static vacuum dryer will not damage the shape of raw materials.

WORKING PRINCIPLE
Vacuum Drying is to let the raw material to be dried at vacuum condition. It uses vacuum pump to pump damp air out and make the working chamber form vacuum status. Therefore, the drying speed of raw material is improved and the energy is saved greatly. Notes: The solvent of raw material can be collected by using a condenser. If the solvent is water, the condenser is not required in order to save investment cost.

APPLICATION
This dryer is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.

PRODUCTION FLOWCHART

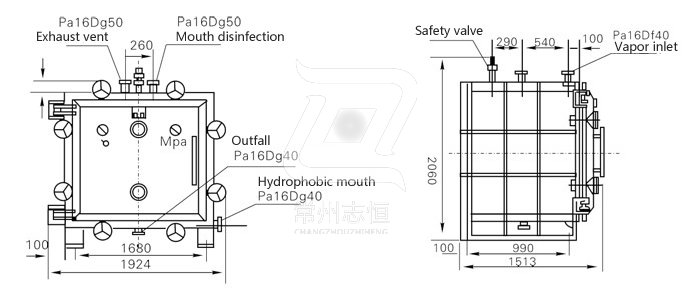

quare Static Vacuum Dryer

Technical parameters

Item / Specification	FZG-10	FZG-15	FZG-20
Inner Dimension of the Dryer (mm)	1500×1060 ×1220	1500×1400 ×1220	1500×1800 ×1220
Outer Dimension of the Dryer (mm)	1513×1924 ×1720	1513×1924 ×2060	1513×1924 ×2500
Qty of Layers	5	8	12
Distance of Layers	122	122	122
Dimension of Tray (mm)	460×640 ×45	460×640 ×45	460×640 ×45
Qty of Trays	20	32	48
Inside Pressure of Drying Rack (MPa)	≤0.784	≤0.784	≤0.784
Working Temperature of Drying Rack (°C)	35-150	35-150	35-150
Vacuum Degree of Empty Dryer	-0.09～0.096
Water Evaporation Rate (In the condition of -0.1MPa with temperature of 110°C) (kg/m2•hr)	7.2	7.2	7.2
Vacuum Pump (for the dryers with condenser)	2X-70A 5.5KW	2X-70A 5.5KW	2X-90A 2KW
Vacuum Pump (for the dryers without condenser)	SK-3 5.5KW	SK-6 11KW	SK-6 11KW
Weight (kg)	1400	2100	3200

Note:SZ water ring vacuum pump can be used together with mechanical pressure increasing pump in order to increase vacuum.

Ordering Information
1) Please choose the suitable model according to the primary moisture content, final moisture content, temperature, vacuum degree, and drying time. The heat source can use steam, hot water, thermal oil, and electricity. If the customer required increasing the drying capacity by add more trays, please specify in the order. 2) If the customer required installation or spare parts, please specify in the order.
3) Customized design service available.
4) We guarantee the quality of the dryer and we ensured the spare parts for the dryer is available in a long term.
