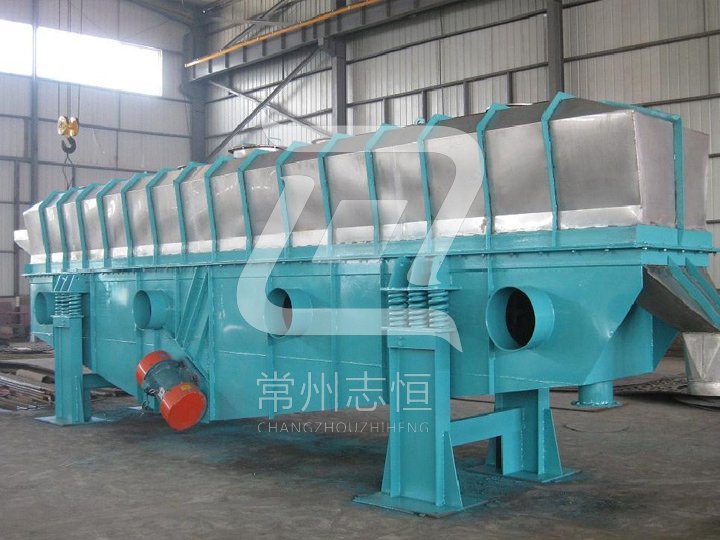

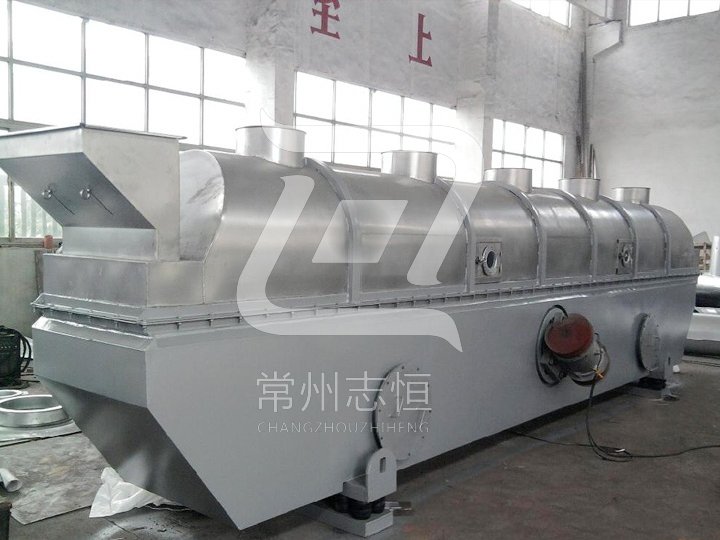

GZQ Vibration Fluidized Bed Dryer

Key word：Vibration Fluidized Bed Dryer,Fluidized,Fluidized Bed Dryer

Product overview：Raw mate rial is feed into the machine from equipment inlet and move forward continuously along with the horizontal direction under vibratory power. The hot air passes through fluidized-bed and exchange with raw materialsdamp…

Product Details Photo gallery Video highlights

Working Principle
Raw mate rial is feed into the machine from equipment inlet and move forward continuously along with the horizontal direction under vibratory power The hot air passes through fluidized—bed and exchange with raw materials' damp, then the wet air is dusted by cyclone separator and exhausted from air outlet，the d ried material is discharged through finished material outlet.

APPLICATION

This dryer is widely used for drying, cooling, wetting of the products in light industry, chemical industry, pharmaceutical industry, foodstuff, and etc.

Applicable Materials

Boric Acid, Borax, Dihydroxybenzene, Malic Acid, Maleic Acid, Monosodium Glutamate, Oxalate, Potassium, Permanganate, Sesame, Pentaerythritol, HPAM, Hypha Protein, Sodium Sulfate, Sodium Borate, Plastic Archon, Catalyst, Baking Soda, Detergent, Quartz Sand, Bean Pulp, Edible Sugar, Refine Salt, Bean, Seeds, Mining Slag, Activated Clay, Compound Fertilizer, and etc.

FEATURES

1. The vibration is created by vibrating motor which is stable in operation, easy for maintenance, low noise, and long service life.
2. The material is being heated evenly and the heat exchange is fully used which ensured high drying capacity. The energy consumption is 30% lower compare to the common dryers.
3.The adjustability of the dryer is good and it is widely used in different industries. The material thickness, moving speed inside the dryer, and amplitude can be adjusted.
4. The damage to the material surface is small so the dryer can be used for fragile materials. The irregular particles will not affect performance of the dryer.
5. A fully enclosed structure will effectively prevent cross contamination between the material and the air environment.
6. Multiple series connection is optional if the material contents high moisture and required high capacity; such as Polyacrylamide.

Rectilinear Vibrating-fluidized Dryer

Technical Parameter

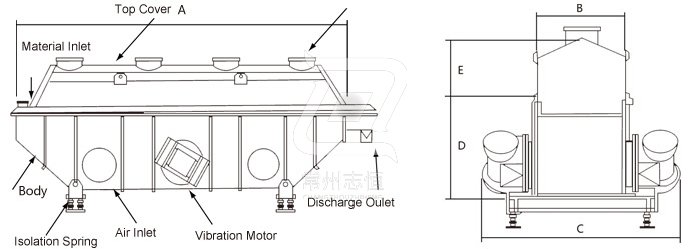

Size / Model	A	B	C	D	E	F	Weight(kg)
GZQ3×0.30	3000	300	1350	900	430	1650	1250
GZQ4.5×0.30	4500	300	1350	900	430	1650	1250
GZQ4.5×0.45	4500	450	1550	950	430	1700	1670
GZQ4.5×0.60	4500	600	1650	950	430	1700	1670
GZQ6×0.45	6000	450	1650	950	430	1700	2100
GZQ6×0.60	6000	600	1700	1000	500	1700	2410
GZQ6×0.75	6000	750	1850	1000	600	1850	2840
GZQ6×0.9	6000	900	2000	1000	600	1850	3160
GZQ7.5×0.60	7500	600	1850	1000	600	1850	3200
GZQ7.5×0.75	7500	750	2000	1000	600	1850	3600
GZQ7.5×0.9	7500	900	2100	1000	600	1850	4140
GZQ7.5×1.2	7500	1200	2500	1150	800	2050	5190

Model	Area of fluidized-bed (M²)	Temperature of inlet air (^oC)	Temperature of outlet (^oC)	Capacity to vapor moisture (kg)	Vibration motor
Model	Area of fluidized-bed (M²)	Temperature of inlet air (^oC)	Temperature of outlet (^oC)	Capacity to vapor moisture (kg)	Model	Power (Kw)
GZQ3×0.30	0.9	70-140	40-70	20-35	ZDS31-6	0.8×2
GZQ4.5×0.30	1.35	70-140	40-70	35-50	ZDS31-6	0.8×2
GZQ4.5×0.45	2.025	70-140	40-70	50-70	ZDS32-6	1.1×2
GZQ4.5×0.60	2.7	70-140	40-70	70-90	ZDS32-6	1.1×2
GZQ6×0.45	2.7	70-140	40-70	80-100	ZDS41-6	1.5×2
GZQ6×0.60	3.6	70-140	40-70	100-130	ZDS41-6	1.5×2
GZQ6×0.75	4.5	70-140	40-70	120-140	ZDS42-6	2.2×2
GZQ6×0.9	5.4	70-140	40-70	140-170	ZDS42-6	2.2×2
GZQ7.5×0.60	4.5	70-140	40-70	130-150	ZDS42-6	2.2×2
GZQ7.5×0.75	5.625	70-140	40-70	150-180	ZDS51-6	3.0×2
GZQ7.5×0.9	6.75	70-140	40-70	160-210	ZDS51-6	3.0×2
GZQ7.5×1.2	9	70-140	40-70	200-260	ZDS51-6	3.0×2
